Technical Specifications
TDK VLCF5020T-2R7N2R2-3 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 54mR |
| Height | 2mm |
| Inductance | 2.7uH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Length | 5mm |
| Max DC Current | 2.28A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Cut Tape |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.98A |
| RoHS Compliant | Yes |
| Saturation Current | 2.28A |
| Series | VLCF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 5.3mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLCF5020T-2R7N2R2-3 Datasheet
Download the complete datasheet for TDK VLCF5020T-2R7N2R2-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

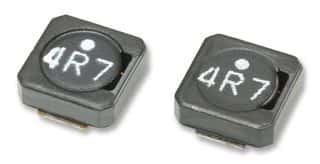

Product Images
