Surface mount shielded wirewound power inductor with 4.7µH inductance and 30% tolerance. Features a ferrite core, 1.7A DC current rating, and 2.09A RMS current. Operates from -40°C to 105°C with a low 122mΩ DCR at 100kHz. Packaged in tape and reel for automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK VLCF5020T-4R7N1R7-1 technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Current | 1.7A |
| DC Resistance (DCR) | 122mR |
| Depth | 5.2mm |
| Height | 2mm |
| Inductance | 4.7uH |
| Inductance Tolerance | 30% |
| Inductor Type | POWER |
| Lead Free | Lead Free |
| Length | 5.3mm |
| Max DC Current | 1.7A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.09A |
| RoHS Compliant | Yes |
| Saturation Current | 1.7A |
| Series | VLCF |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLCF5020T-4R7N1R7-1 Datasheet
Download the complete datasheet for TDK VLCF5020T-4R7N1R7-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

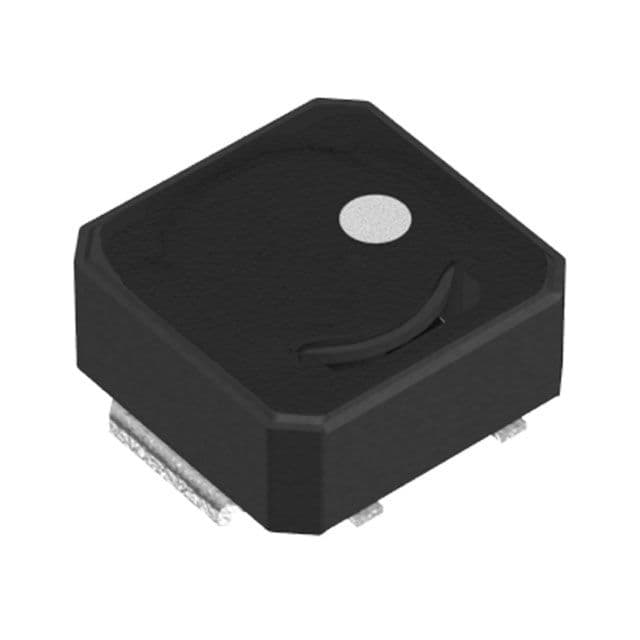

Product Images
