Shielded wirewound surface mount power inductor with 2.2µH inductance and 20% tolerance. Features a ferrite core, 2.71A RMS current rating, and 0.055Ω DC resistance. Operates from -40°C to 105°C, with a saturation current of 2.54A. Packaged in tape and reel for automated assembly.
PackageNonstandard
Current Rating2.71A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK VLF504012MT-2R2M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 2.71A |
| DC Resistance (DCR) | 55mR |
| Height | 1.2mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 20% |
| Length | 0.197inch |
| Max DC Current | 2.54A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.71A |
| RoHS Compliant | Yes |
| Saturation Current | 2.54A |
| Series | VLF-M |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLF504012MT-2R2M Datasheet
Download the complete datasheet for TDK VLF504012MT-2R2M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

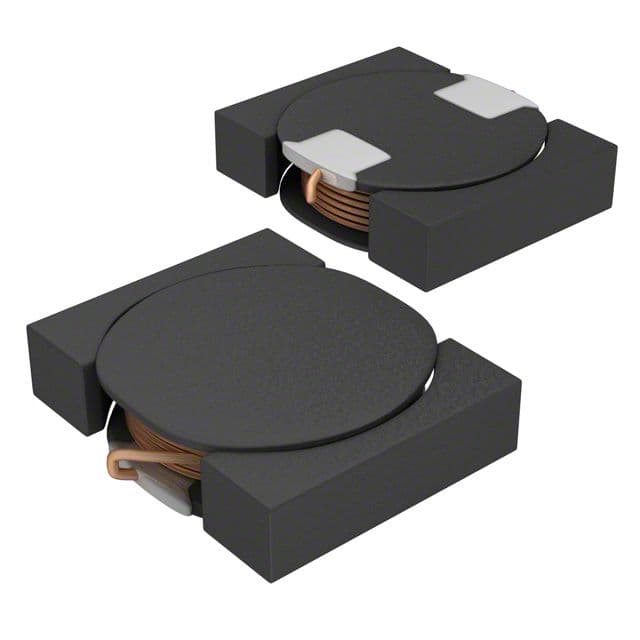

Product Images
