Surface mount shielded wirewound power inductor with 2.2µH inductance and 30% tolerance. Features a ferrite core, 6.2A RMS current rating, and 6.7A maximum DC current. Offers a low DC resistance of 15mΩ at a test frequency of 100kHz. Operates within a temperature range of -40°C to 105°C and is supplied in tape and reel packaging.
Package8040
Current Rating6.2A
MountingSurface Mount
Inductance2.2uH
Quick Jump:
Technical Specifications
TDK VLP8040T-2R2N technical specifications.
General
| Package/Case | 8040 |
| Core Material | Ferrite |
| Current Rating | 6.2A |
| DC Resistance (DCR) | 15mR |
| Depth | 8.6mm |
| Height | 4mm |
| Height - Seated (Max) | 0.157inch |
| Inductance | 2.2uH |
| Inductance Tolerance | 30% |
| Lead Free | Lead Free |
| Length | 0.315inch |
| Max DC Current | 6.7A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Rated Current-Max | 6.7A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 6.2A |
| RoHS Compliant | Yes |
| Saturation Current | 6.7A |
| Series | VLP |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 0.303inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLP8040T-2R2N Datasheet
Download the complete datasheet for TDK VLP8040T-2R2N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

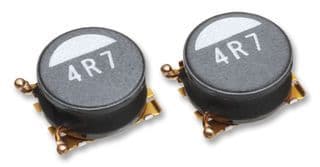

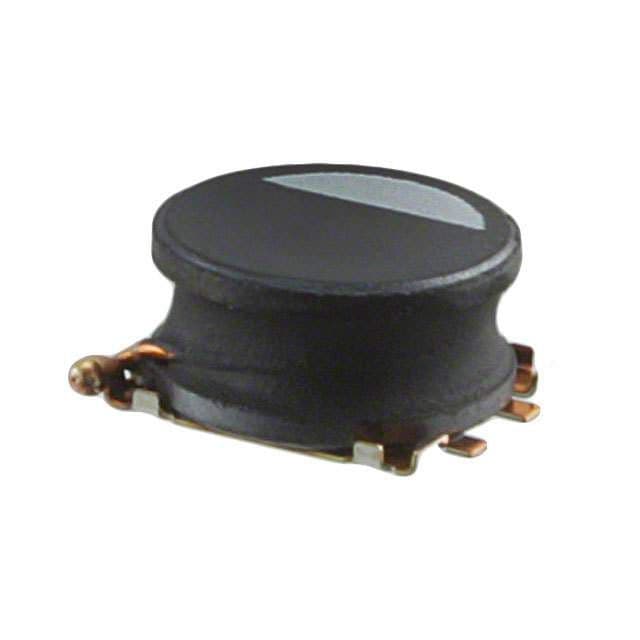

Product Images
