Surface mount shielded wirewound power inductor featuring 47µH inductance with a 20% tolerance. This ferrite core component offers a DC resistance of 160mΩ and a rated current of 1.5A, with an RMS current of 1.7A. Operating from -40°C to 105°C, it is supplied in tape and reel packaging.
PackageNonstandard
MountingSurface Mount
Inductance47uH
Quick Jump:
Technical Specifications
TDK VLP8040T-470M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| DC Resistance (DCR) | 160mR |
| Depth | 8.6mm |
| Height | 4mm |
| Inductance | 47uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 8mm |
| Max DC Current | 1.5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Rated Current-Max | 1.5A |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.7A |
| RoHS Compliant | Yes |
| Saturation Current | 1.5A |
| Series | VLP |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 8mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLP8040T-470M Datasheet
Download the complete datasheet for TDK VLP8040T-470M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

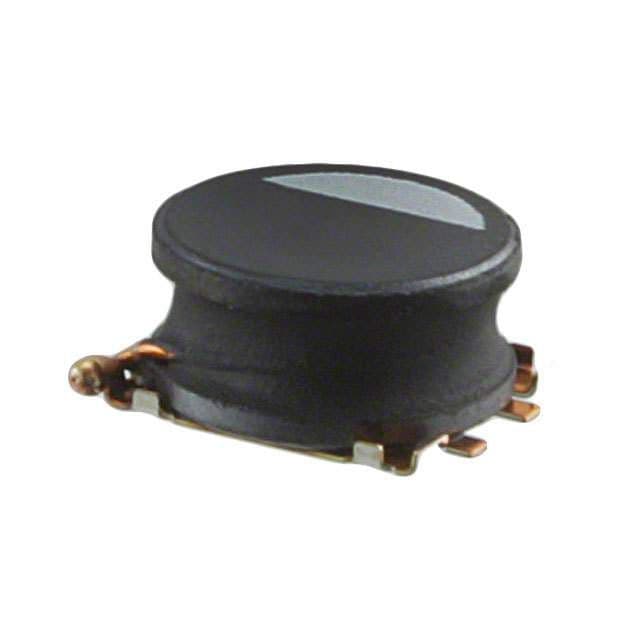

Product Images
