Surface mount shielded wirewound power inductor with 2.2µH inductance and 20% tolerance. Features a 1.3A maximum DC current rating, 1.8A saturation current, and 0.155Ω DC resistance. Operates within a -40°C to 105°C temperature range and is housed in a 1008 (2520 metric) case. Supplied on tape and reel for automated assembly.
Package1008
Resistance0.155R
Current Rating1.3A
MountingSurface Mount
Quick Jump:
Technical Specifications
TDK VLS252012T-2R2M1R3 technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Current Rating | 1.3A |
| DC Current | 1.8A |
| DC Resistance (DCR) | 155mR |
| Depth | 2.1mm |
| Height | 1.2mm |
| Height - Seated (Max) | 0.039inch |
| Inductance | 2.2uH |
| Lead Free | Lead Free |
| Length | 0.098inch |
| Max DC Current | 1.3A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 0.155R |
| RoHS Compliant | Yes |
| Saturation Current | 1.8A |
| Series | VLS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 0.079inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLS252012T-2R2M1R3 Datasheet
Download the complete datasheet for TDK VLS252012T-2R2M1R3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

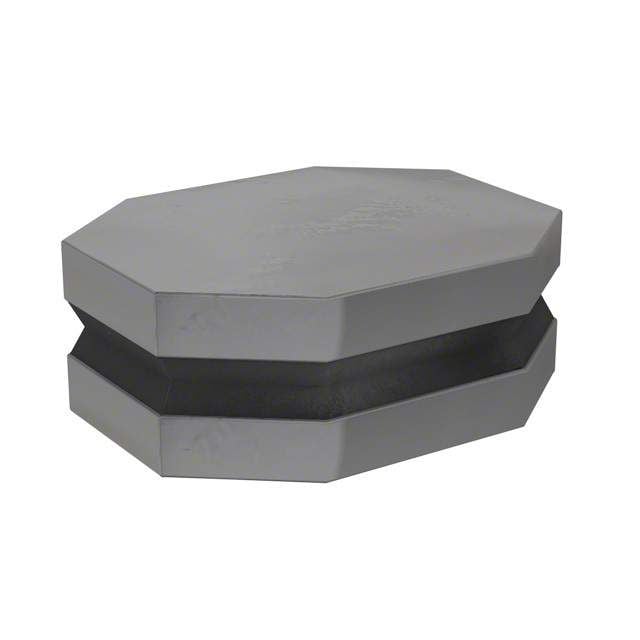

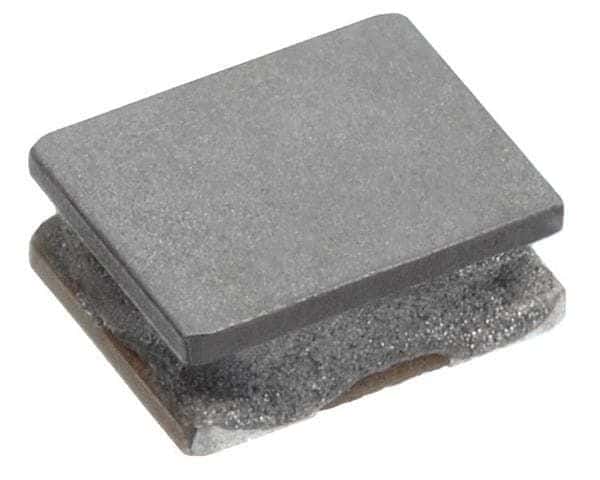

Product Images
