Surface mount shielded wirewound power inductor with 4.7µH inductance and 20% tolerance. Features 800mA DC current rating, 1.2A saturation current, and 0.406 Ohm DC resistance. Operates from -40°C to 105°C and is supplied in 1008/2520 package size on tape and reel.
Package1008
Current Rating800mA
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
TDK VLS252012T-4R7MR81 technical specifications.
General
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1008 |
| Current Rating | 800mA |
| DC Current | 800mA |
| DC Resistance (DCR) | 406mR |
| Depth | 2.1mm |
| Height | 1.2mm |
| Height - Seated (Max) | 0.039inch |
| Inductance | 4.7uH |
| Length | 0.098inch |
| Max DC Current | 810mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Saturation Current | 1.2A |
| Series | VLS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 0.079inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLS252012T-4R7MR81 Datasheet
Download the complete datasheet for TDK VLS252012T-4R7MR81 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

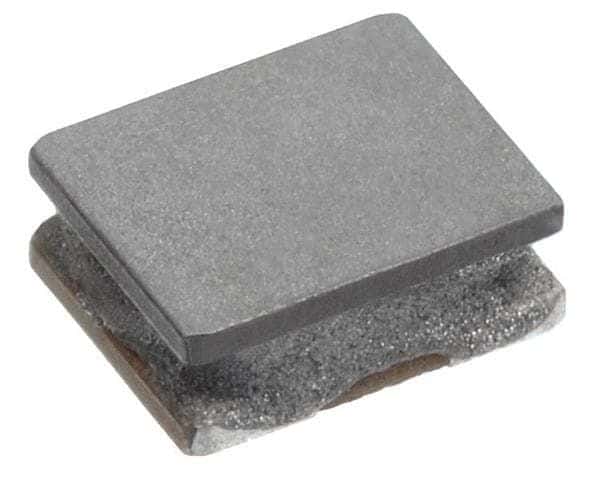

Product Images
