Technical Specifications
TDK VLS3012T-4R7M1R0 technical specifications.
General
| Case Code (Metric) | 3012 |
| Package/Case | 1212 |
| DC Resistance (DCR) | 156mR |
| Depth | 3.1mm |
| Height | 1.2mm |
| Inductance | 4.7uH |
| Length | 3mm |
| Max DC Current | 1A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Saturation Current | 1A |
| Series | VLS |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLS3012T-4R7M1R0 Datasheet
Download the complete datasheet for TDK VLS3012T-4R7M1R0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

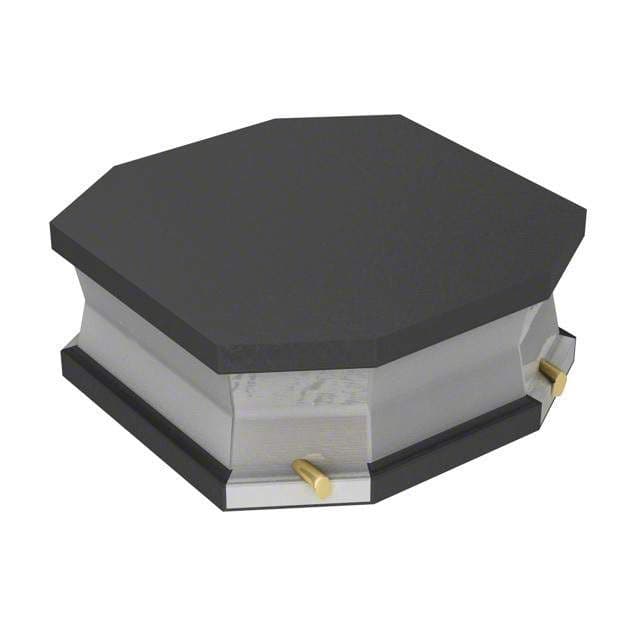

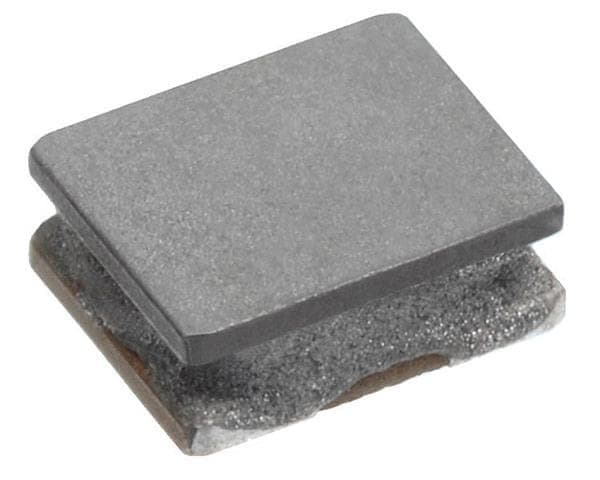

Product Images
