Surface mount shielded wirewound power inductor with 10µH inductance and 20% tolerance. Features a ferrite core, 1.33A RMS current rating, and 890mA saturation current. DC resistance is 228mΩ. Operating temperature range is -40°C to 105°C. Dimensions are 4.1mm depth, 1.2mm height, and 4mm length.
PackageNonstandard
Current Rating890mA
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
TDK VLS4012ET-100M technical specifications.
General
| Case Code (Metric) | 4012 |
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 890mA |
| DC Resistance (DCR) | 228mR |
| Depth | 4.1mm |
| Height | 1.2mm |
| Height - Seated (Max) | 0.047inch |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 4mm |
| Max DC Current | 990mA |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.33A |
| RoHS Compliant | Yes |
| Saturation Current | 890mA |
| Self Resonant Frequency | 1MHz |
| Series | VLS-E |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 1MHz |
| Tolerance | 20% |
| Width | 0.157inch |
Compliance
| RoHS | Compliant |
Datasheet
TDK VLS4012ET-100M Datasheet
Download the complete datasheet for TDK VLS4012ET-100M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

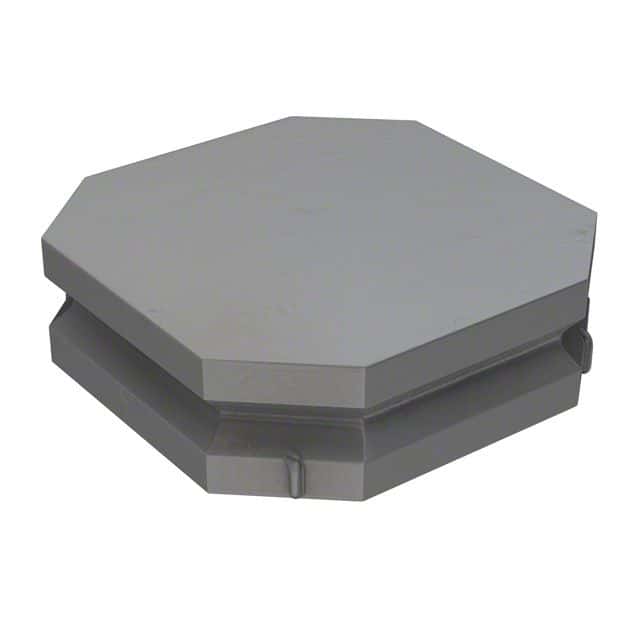

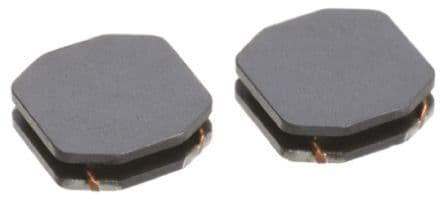

Product Images
