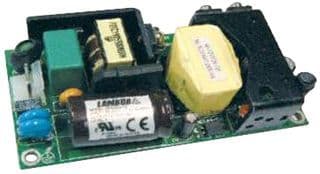

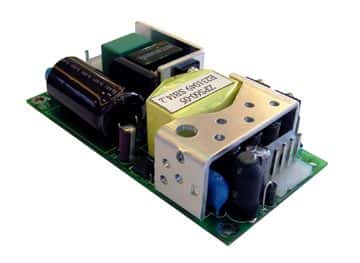

Enclosed AC/DC power supply, 5V nominal output voltage, delivering 6A maximum output current for 30W of output power. Features 40W maximum power dissipation and 79% efficiency, with a 3kV isolation voltage. Designed for chassis mount and panel applications, operating from 0°C to 70°C. Dimensions are 4 inches (length) x 2 inches (width) x 1.07 inches (height).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ZPSA405 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK ZPSA405 technical specifications.
| Approvals | CE |
| Current - Output 1 | 6A |
| Depth | 50.8mm |
| Efficiency | 79% |
| Height | 1.07inch |
| Isolation Voltage | 3kV |
| Length | 4inch |
| Max Current Rating | 1.2A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 6A |
| Max Output Power | 30W |
| Max Power Dissipation | 40W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 5V |
| Number of Outputs | 1 |
| Output Current | 6A |
| Output Power | 30W |
| Output Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | ZPSA40 |
| Voltage - Output 1 | 5V |
| Weight | 4.585615oz |
| Width | 2inch |
| RoHS | Compliant |
