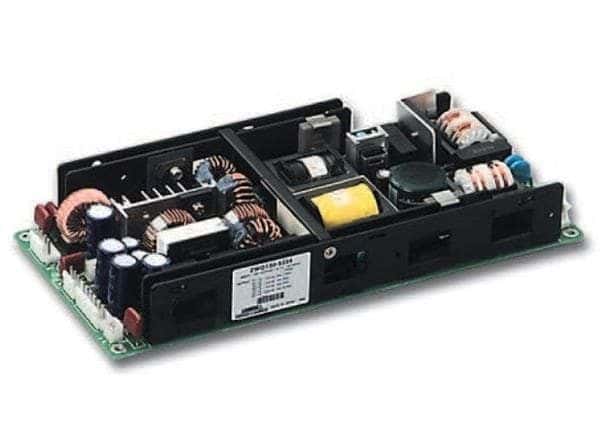

Enclosed AC/DC power supply featuring four outputs: 5V at 19A, 12V, -12V, and 3.3V. Delivers 130W maximum power with a peak output of 149.6W. Operates efficiently at 72% with 3kV isolation voltage, suitable for chassis mounting. Designed for a wide temperature range from -10°C to 70°C. Compliant with CE standards and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ZWQ1305223 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK ZWQ1305223 technical specifications.
| Approvals | CE |
| Current - Output 1 | 19A |
| Depth | 106mm |
| Efficiency | 72% |
| Height | 1.38inch |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 225mm |
| Max Current Rating | 2.6A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 10A |
| Max Output Power | 149.6W |
| Max Power Dissipation | 130W |
| Mount | Chassis Mount |
| Number of Outputs | 4 |
| Output Power | 149.6W |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | ZWQ |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | 3.3V |
| Width | 4.17inch |
| RoHS | Compliant |
