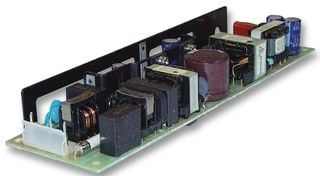

150W AC/DC converter with a single 12V output, delivering 12.5A. Features include 85-265V AC input range, 79% efficiency, and 3kV isolation voltage. Operates from -10°C to 70°C and is chassis or panel mountable. Approvals include UL, CSA, CE, and TUV, with RoHS compliance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TDK ZWS150AF-12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TDK ZWS150AF-12 technical specifications.
| Approvals | UL, CSA, CE, TUV |
| Current - Output 1 | 12.5A |
| Current Rating | 12.5A |
| Depth | 75mm |
| Efficiency | 79% |
| Frequency | 63Hz |
| Height | 4.72inch |
| Isolation Voltage | 3kV |
| Length | 222mm |
| Max Input Voltage (AC) | 265V |
| Min Input Voltage (AC) | 85V |
| Max Input Voltage | 265V |
| Min Input Voltage | 85V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -10°C |
| Max Output Current | 12.5A |
| Max Output Power | 150W |
| Max Power Dissipation | 150W |
| Mount | Chassis Mount, Panel |
| Nominal Output Voltage | 12V |
| Number of Outputs | 1 |
| Output Current | 12.5A |
| Output Power | 150W |
| Output Voltage | 12V |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ZWS-AF (150W) |
| Voltage - Output 1 | 12V |
| Weight | 7.760272oz |
| Width | 3.23inch |
| RoHS | Compliant |
Download the complete datasheet for TDK ZWS150AF-12 to view detailed technical specifications.
