Optical Solid State Relay (SSR) module with transistor output, featuring a 50mA contact current rating and 18mA output current. Operates with a nominal input voltage of 120V AC or DC, requiring 6mA input current. This single-channel SPST relay supports up to 30V output voltage and is designed for through-hole PCB mounting with PC pin termination. Approvals include UL and CSA, with a temperature range of -30°C to 80°C.
PackageModule
Current Rating50mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity IAC-15 technical specifications.
General
| Approvals | UL, CSA |
| Package/Case | Module |
| Color | Yellow |
| Contact Current Rating | 50mA |
| Current Rating | 50mA |
| Depth | 15.2mm |
| ELV | Compliant |
| Height | 31.8mm |
| Input Current | 6mA |
| Input Type | DIGITAL |
| Lead Free | Contains Lead |
| Length | 43.18mm |
| Manufacturer Series | IAC |
| Max Input Voltage (AC) | 140V |
| Min Input Voltage (AC) | 90V |
| Max Input Voltage (DC) | 140V |
| Min Input Voltage (DC) | 90V |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -30°C |
| Max Output Voltage | 30V |
| Mount | Through Hole, PCB |
| Nominal Input Voltage (AC) | 120V |
| Nominal Input Voltage (DC) | 120.12kV |
| Number of Channels | 1 |
| Number of I/Os | 1 |
| Number of Outputs | 1 |
| Output Current | 18mA |
| Output Voltage | 30V |
| Primary Type | MODULE |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | IAC |
| Termination | PC Pins |
| Throw Configuration | SPST |
| Turn-Off Delay Time | 30ms |
| Turn-On Delay Time | 20ms |
| DC Rated Voltage | 120V |
| Weight | 35g |
| Width | 31.8mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity IAC-15 Datasheet
Download the complete datasheet for TE Connectivity IAC-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

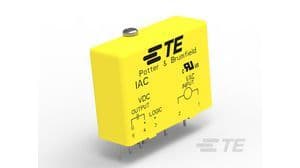

Product Images
