High-efficiency, non-isolated DC/DC controller and regulator module with a 3A maximum output current. Features a wide input voltage range from 6V to 42V and a maximum output voltage of 30V. Operates efficiently up to 97% and supports a maximum power dissipation of 90W. Designed for surface mount applications with a compact 7-TO-PMOD package, operating from -40°C to 125°C. Includes Under-Voltage Lockout (UVLO) protection and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMZ14203HTZX/NOPB technical specifications.
General
| Depth | 9.85mm |
| Efficiency | 97% |
| Features | UVLO |
| Height | 0.18inch |
| Isolation | Non-Isolated |
| Lead Free | Lead Free |
| Length | 0.4inch |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Power Dissipation | 90W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Voltage | 5V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Voltage - Output 1 | 30V |
| Width | 0.54inch |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMZ14203HTZX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ14203HTZX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

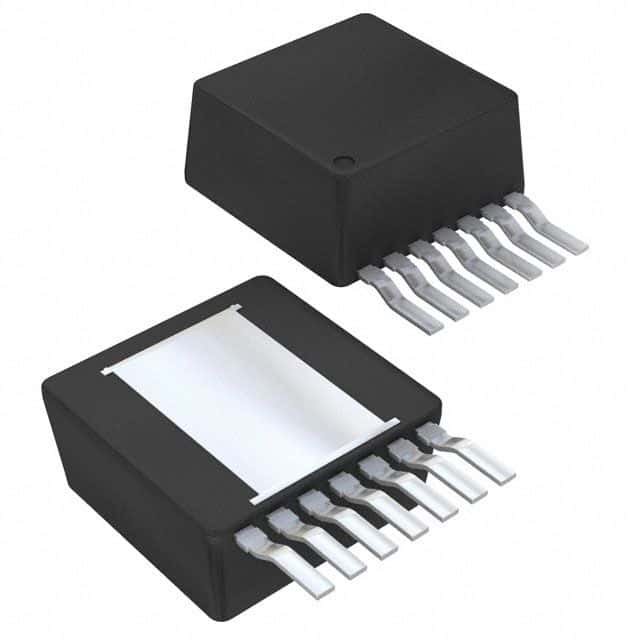

Product Images
