8-bit bidirectional voltage level translator featuring CMOS technology and 3-state outputs. Supports a data rate of 500Mbps with a propagation delay of 32.2ns. Operates with a supply voltage range of 1.65V to 5.5V, ideal for 3.3V systems. Packaged in a 24-pin TSSOP for surface mounting, this RoHS compliant component offers non-inverting logic.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC8T245PWR technical specifications.
General
Package/Case
TSSOP
Channel Type
Bidirectional
Data Rate
500Mbps
Direction
Bidirectional
Height
1.05mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
7.9mm
Logic Function
Transceiver, Translator
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Outputs
8
Operating Supply Voltage
3.3V
Output Type
3-STATE
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
32.2ns
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
32.2ns
Weight
0.003157oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC8T245PWR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC8T245PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

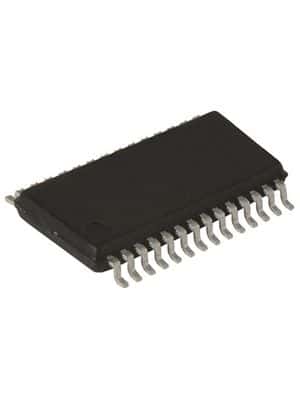

Product Images
