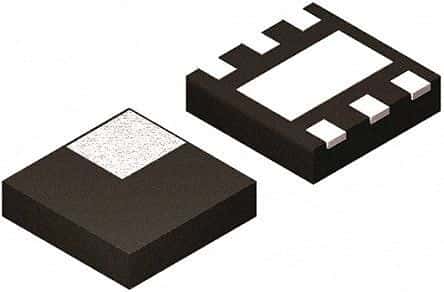

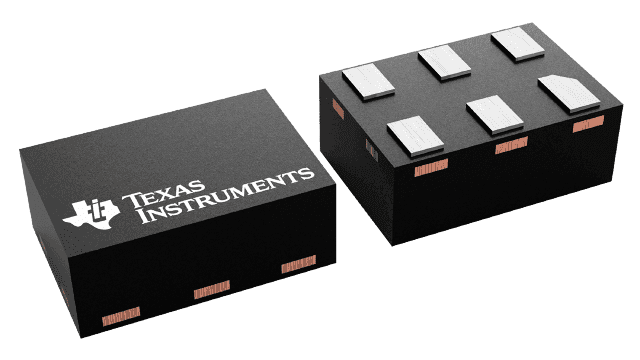

Quad 0.8-pF, 5.5-V, ±8-kV ESD protection diode with 15-V tolerant Vbus for USB Interface. This unidirectional transient voltage suppressor offers 4 channels of ESD protection, featuring a low capacitance of 15pF and a minimum breakdown voltage of 6V. Designed for USB interfaces, it operates within a reverse standoff voltage of 5.5V and a working voltage of 19V, with a peak pulse current of 3A and peak pulse power of 60W. Packaged in a compact 6-SON (1.45mm x 1.05mm x 0.55mm) with SMD/SMT termination, this RoHS compliant component operates from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments TPD4S012DRYR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 15pF |
| Package/Case | SON |
| Depth | 1mm |
| Direction | Unidirectional |
| ESD Protection | Yes |
| Height | 0.55mm |
| Interface | USB |
| Lead Free | Lead Free |
| Length | 1.45mm |
| Min Breakdown Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 60W |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Unidirectional Channels | 4 |
| Operating Supply Voltage | 950mV |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 3A |
| Peak Pulse Power | 60W |
| Polarity | Unidirectional |
| Power Line Protection | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Standoff Voltage | 5.5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 500um |
| Width | 1.05mm |
| Working Voltage | 19V |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments TPD4S012DRYR to view detailed technical specifications.
