United Automation CSR2-15E technical specifications.
General
Frequency
60Hz
Height
42.5mm
Length
43mm
Max Input Voltage
230V
Max Operating Temperature
75°C
Min Operating Temperature
0°C
Max Output Current
15A
Max Supply Voltage (AC)
253V
Min Supply Voltage (AC)
207V
Max Supply Voltage
253V
Min Supply Voltage
2.7V
Mount
Panel
Output Type
Adjustable
Output Voltage
230V
Reach SVHC Compliant
No
Series
CSR2
Width
36mm
Compliance
RoHS
Compliant
Datasheet
United Automation CSR2-15E Datasheet
Download the complete datasheet for United Automation CSR2-15E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

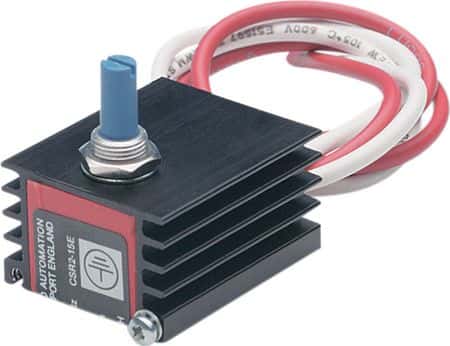

Product Images
