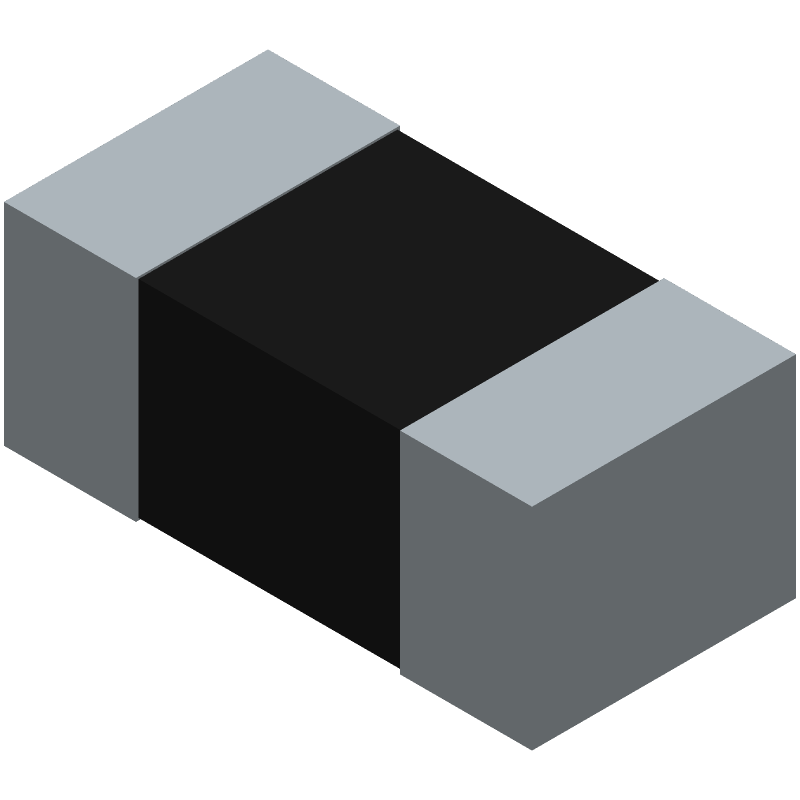

Surface mount thick film chip resistor, 84.5kΩ resistance with 1% tolerance. Features 0.063W power dissipation and a 50V voltage rating. Constructed with metal glaze technology in a 0402 (1005 metric) case size, measuring 1mm x 0.5mm x 0.35mm. Operating temperature range from -55°C to 155°C, with a temperature coefficient of 100ppm/°C. Automotive AEC-Q200 qualified and RoHS compliant.
Package0402
Resistance84.5kR
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay CRCW040284K5FKED technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Construction
Rectangular
Contact Plating
Tin
Depth
0.5mm
Features
Automotive AEC-Q200
Height
0.35mm
Length
1mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
63mW
Military Standard
Not
Number of Terminations
2
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
84.5kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
0402
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
50V
DC Rated Voltage
50V
Weight
2.3E-05oz
Width
0.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW040284K5FKED Datasheet
Download the complete datasheet for Vishay CRCW040284K5FKED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
