Optical Solid State Relay, 1-Channel, SPST configuration, featuring 5.3kV isolation voltage. This through-hole mount, DIP-6 packaged relay offers a DC input type with a maximum input voltage of 1.45V and a maximum input current of 50mA. The output stage handles a load current of 200mA with a maximum output voltage of 200V and an on-state resistance of 15 Ohms. Operating temperature range spans from -40°C to 85°C.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Vishay LH1510AT technical specifications.
General
| Package/Case | DIP |
| Depth | 6.5mm |
| Forward Current | 950uA |
| Height | 3.81mm |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Length | 8.7mm |
| Load Current | 200mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.45V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 350mA |
| Max Output Voltage | 200V |
| Mount | Through Hole, PCB |
| On-State Resistance | 15R |
| Output Current | 350mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Relay Type | Relay |
| RoHS Compliant | Yes |
| Series | LH1510 |
| Termination | PC Pin |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LH1510AT Datasheet
Download the complete datasheet for Vishay LH1510AT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

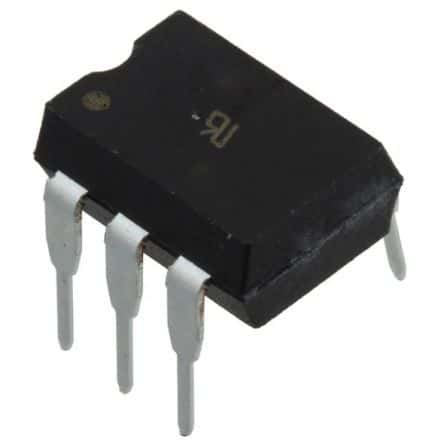

Product Images
