The LH1512BAC is a solid state relay with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum input current of 50mA and a maximum output current of 200mA. The relay is packaged in a 8-pin SMD package and is RoHS compliant. It is suitable for use in applications where high isolation voltage is required, with an isolation voltage of 3.75kV.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay LH1512BAC technical specifications.
General
| Package/Case | SMD/SMT |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 3.75kV |
| Load Current | 200mA |
| Max Input Current | 50mA |
| Max Input Voltage | 1.45V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 200mA |
| Max Output Voltage | 200V |
| Mount | Surface Mount |
| Output Current | 200mA |
| Package Quantity | 2000 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LH1512 |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Vishay LH1512BAC Datasheet
Download the complete datasheet for Vishay LH1512BAC to view detailed technical specifications.
No datasheet is available for this part.

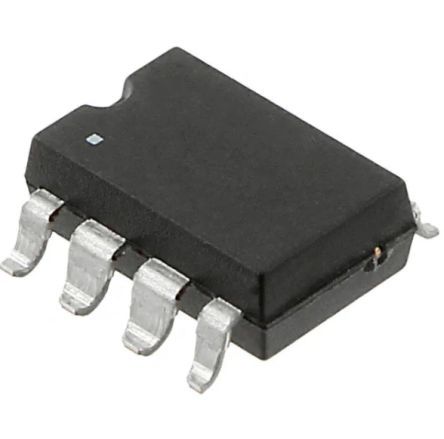

Product Images
