The Vishay TSOP38136 is an optical photo IC with a height of 6.95mm, length of 5mm, and width of 4.8mm. It operates within a temperature range of -25°C to 85°C and has a maximum supply voltage of 5.5V and minimum supply voltage of 2.5V. The device has a low operating supply current of 350uA and can handle an output current of 5mA. It is available in rail/Tube packaging and is compliant with RoHS regulations.
Current350uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay TSOP38136 technical specifications.
General
| Height | 6.95mm |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Operating Supply Current | 350uA |
| Orientation | Side View |
| Output Current | 5mA |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 45m |
| Supply Current | 350uA |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSOP38136 Datasheet
Download the complete datasheet for Vishay TSOP38136 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

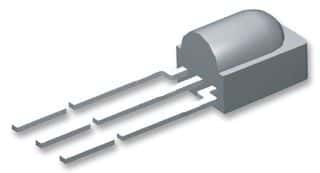

Product Images
