The TSOP38436 photo IC module from Vishay is a compact, through-hole mounted device designed for optical sensing applications. Operating within a temperature range of -25°C to 85°C, this module can supply up to 450uA of current from a voltage range of 2.5V to 5.5V. With a maximum output current of 5mA, the TSOP38436 is suitable for a variety of sensing tasks. The module is packaged in a bulk format and is compliant with RoHS regulations.
PackageModule
Current350uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay TSOP38436 technical specifications.
General
| Package/Case | Module |
| Height | 6.95mm |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Operating Supply Current | 450uA |
| Orientation | Side View |
| Output Current | 5mA |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 45m |
| Supply Current | 350uA |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSOP38436 Datasheet
Download the complete datasheet for Vishay TSOP38436 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

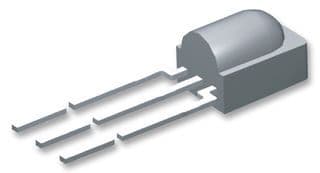

Product Images
