The TSOP39538 is a photo IC from Vishay, operating within a temperature range of -25°C to 85°C. It is designed to function between a minimum supply voltage of 2.5V and a maximum supply voltage of 5.5V. The device is mounted through a hole and features a top view orientation. It is compliant with RoHS regulations and has a sensing distance of 45 meters.
Current350uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay TSOP39538 technical specifications.
General
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Operating Supply Current | 350uA |
| Orientation | Top View |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 45m |
| Supply Current | 350uA |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSOP39538 Datasheet
Download the complete datasheet for Vishay TSOP39538 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

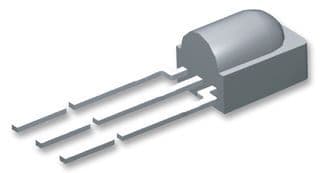

Product Images
