The Vishay TSOP58236 is a photo IC with a sensing distance of 40m. It operates within a temperature range of -25°C to 85°C and is powered by a supply voltage between 2.5V and 5.5V. The device is mounted through a hole and has a supply current of 700uA. It is compliant with RoHS regulations.
Current700uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay TSOP58236 technical specifications.
General
| Height | 6.95mm |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Through Hole |
| Operating Supply Current | 700uA |
| Orientation | Side View |
| Output Current | 5mA |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 40m |
| Supply Current | 700uA |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay TSOP58236 Datasheet
Download the complete datasheet for Vishay TSOP58236 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

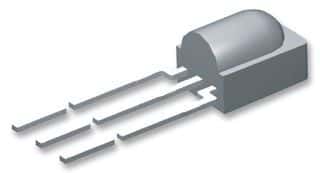

Product Images
