Solid State Relay (SSR) with optical isolation, featuring a 2A AC/DC output capability and a 60V maximum output voltage. This SPST relay accepts a DC input current up to 50mA with a maximum input voltage of 1.5V. It offers a high isolation voltage of 5.3kV and operates within a temperature range of -40°C to 85°C. Packaged in a 6-pin PDIP SMD format on tape and reel, it utilizes gull wing termination for surface mounting.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay VO14642AABTR technical specifications.
General
| Package/Case | SMD/SMT |
| Input Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 5.3kV |
| Lead Free | Lead Free |
| Load Current | 2A |
| Max Input Current | 50mA |
| Max Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 60V |
| Mount | Surface Mount |
| Output Current | 2A |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Gull Wing |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
Vishay VO14642AABTR Datasheet
Download the complete datasheet for Vishay VO14642AABTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

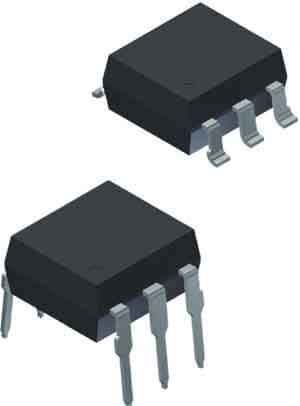

Product Images
