Radial leaded, through-hole metal foil resistor offering 120 Ohms resistance with a precise 0.01% tolerance. Features a 600mW maximum power dissipation and a 300V voltage rating, operating across a wide temperature range from -55°C to 125°C. This moisture-resistant component is RoHS compliant and designed with a 3.81mm lead pitch.
PackageRadial
Resistance120R
Voltage Rating300V
Quick Jump:
Technical Specifications
VPG Foil Resistors Y0007120R000T9L technical specifications.
General
| Package/Case | Radial |
| Depth | 8.28mm |
| Features | Moisture Resistant |
| Height | 8.28mm |
| Lead Pitch | 3.81mm |
| Length | 7.62mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600mW |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 120R |
| Resistance Tolerance | 0.01% |
| Resistor Type | Metal Foil |
| RoHS Compliant | Yes |
| Series | S |
| Technology | METAL FOIL |
| Termination | Radial |
| Tolerance | 0.01% |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 0.021164oz |
| Width | 2.67mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y0007120R000T9L Datasheet
Download the complete datasheet for VPG Foil Resistors Y0007120R000T9L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

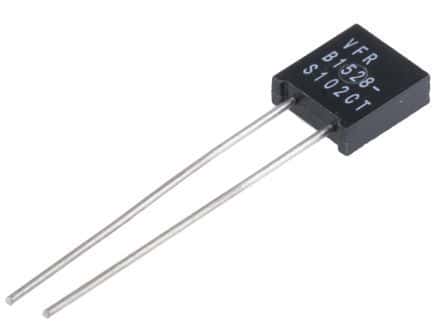

Product Images
