Through-hole fixed resistor featuring 1 Ohm resistance with a 1% tolerance. This metal foil resistor offers a maximum power dissipation of 8W and a voltage rating of 300V. Housed in a TO-220 package, it has four radial terminations with a 5.08mm lead pitch. Operating temperature range spans from -55°C to 150°C.
PackageTO-220
Resistance1R
Voltage Rating300V
Quick Jump:
Technical Specifications
VPG Foil Resistors Y09261R00000F9L technical specifications.
General
| Package/Case | TO-220 |
| Depth | 15.62mm |
| Height | 15.62mm |
| Lead Diameter | 0.76mm |
| Lead Pitch | 5.08mm |
| Length | 10.16mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 8W |
| Number of Terminations | 4 |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| Resistance | 1R |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Foil |
| RoHS Compliant | Yes |
| Series | VPR221 |
| Technology | METAL FOIL |
| Termination | Radial |
| Tolerance | 1% |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Width | 3.81mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y09261R00000F9L Datasheet
Download the complete datasheet for VPG Foil Resistors Y09261R00000F9L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

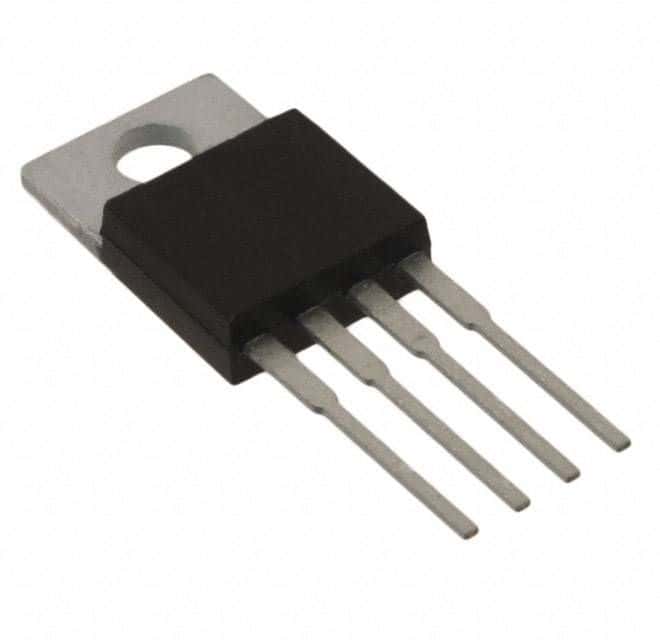

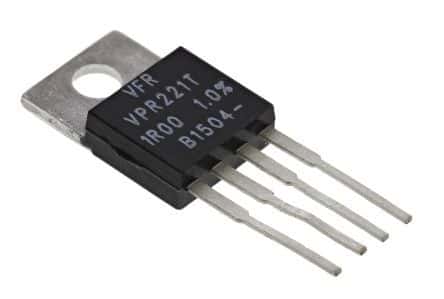

Product Images
