SMD/SMT chip resistor featuring 5mR resistance with a 1% tolerance. This metal foil resistor offers 3W maximum power dissipation and a voltage rating of 3.8mV. Its 3637 case code (9194 metric) utilizes copper and tin contact plating, with dimensions of 9.398mm depth, 0.635mm height, 0.36inch length, and 9.4mm width. Operating temperature range is -65°C to 170°C, with moisture resistance and 4 terminations.
Package3637
Resistance5mR
Voltage Rating3.8mV
Quick Jump:
Technical Specifications
VPG Foil Resistors Y14880R00500F9R technical specifications.
General
| Case Code (Imperial) | 3637 |
| Case Code (Metric) | 9194 |
| Package/Case | 3637 |
| Contact Plating | Copper, Tin |
| Depth | 9.398mm |
| Features | Moisture Resistant |
| Height | 0.635mm |
| Length | 0.36inch |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 3W |
| Number of Terminations | 4 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 5mR |
| Resistance Tolerance | 1% |
| Resistor Type | Metal Foil |
| Series | CSM |
| Technology | METAL FOIL |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 3.8mV |
| Weight | 0.010229oz |
| Width | 9.4mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y14880R00500F9R Datasheet
Download the complete datasheet for VPG Foil Resistors Y14880R00500F9R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

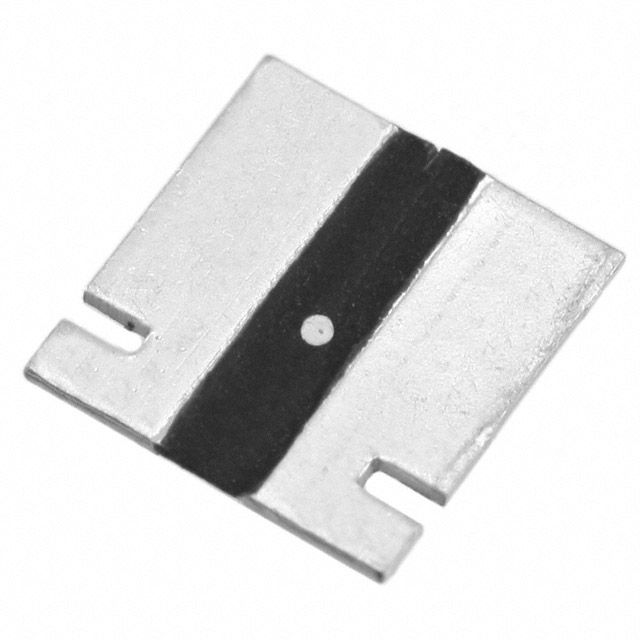

Product Images
