High-precision 10kR metal foil chip resistor with 0.01% tolerance, rated at 0.3W (300mW) and 87V. This 1206 (3216 metric) SMD/SMT component features a rectangular construction, measuring 3.2mm in length, 1.57mm in width, and 0.64mm in height. Operating across a wide temperature range of -55°C to 150°C, it offers moisture resistance and is supplied in tape and reel packaging.
Package1206
Resistance10kR
Voltage Rating87V
Quick Jump:
Technical Specifications
VPG Foil Resistors Y162510K0000T9R technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Construction
Rectangular
Depth
1.57mm
Features
Moisture Resistant
Height
0.64mm
Length
3.2mm
Max Operating Temperature
150°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
300mW
Number of Terminations
2
Package Quantity
100
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
10kR
Resistance Tolerance
0.01%
Resistor Type
Metal Foil
RoHS Compliant
Yes
Series
VSMP
Technology
METAL FOIL
Termination
SMD/SMT
Tolerance
0.01%
Voltage Rating
87V
Weight
0.000571oz
Width
1.57mm
Compliance
RoHS
Compliant
Datasheet
VPG Foil Resistors Y162510K0000T9R Datasheet
Download the complete datasheet for VPG Foil Resistors Y162510K0000T9R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

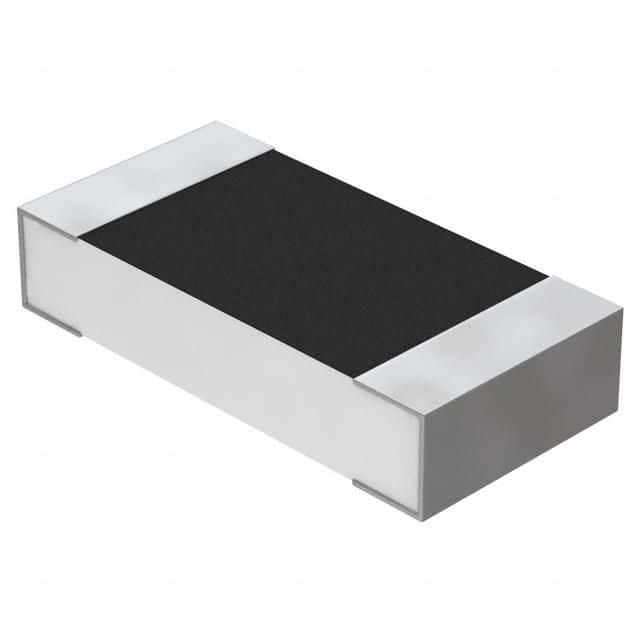

Product Images
