SMD/SMT metal foil chip resistor offering 5kΩ resistance with a precise 0.01% tolerance. Features a 1/4W (250mW) power rating and a 73V voltage rating. Housed in a 2412 (6032) SMD case with dimensions of 5.99mm length, 3.2mm width, and 2.49mm height. Operates across a wide temperature range from -55°C to 125°C and is moisture resistant.
PackageSMD/SMT
Resistance5kR
Voltage Rating73V
Quick Jump:
Technical Specifications
VPG Foil Resistors Y17455K00000T9R technical specifications.
General
| Case Code (Imperial) | 2412 |
| Case Code (Metric) | 6032 |
| Package/Case | SMD/SMT |
| Depth | 3.2mm |
| Features | Moisture Resistant |
| Height | 2.49mm |
| Length | 5.99mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Number of Terminations | 2 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 5kR |
| Resistance Tolerance | 0.01% |
| Resistor Type | Metal Foil |
| Series | SMR1DZ |
| Technology | METAL FOIL |
| Termination | SMD/SMT |
| Tolerance | 0.01% |
| Voltage Rating | 73V |
| DC Rated Voltage | 73V |
| Weight | 0.004032oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y17455K00000T9R Datasheet
Download the complete datasheet for VPG Foil Resistors Y17455K00000T9R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

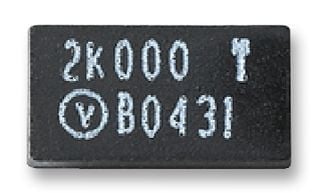

Product Images
