High-precision 10kΩ metal foil chip resistor with a tight 0.01% tolerance, rated for 0.6W power dissipation and 180V. Features a 2917 (7343 metric) SMD/SMT package with dimensions of 7.29mm length, 4.32mm width, and 2.79mm height. Operating temperature range spans -55°C to 125°C, with moisture resistance and RoHS compliance.
PackageSMD/SMT
Resistance10kR
Voltage Rating180V
Quick Jump:
Technical Specifications
VPG Foil Resistors Y174610K0000T9R technical specifications.
General
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | SMD/SMT |
| Depth | 4.32mm |
| Features | Moisture Resistant |
| Height | 2.79mm |
| Length | 7.29mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 600mW |
| Number of Terminations | 2 |
| Package Quantity | 50 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 10kR |
| Resistance Tolerance | 0.01% |
| Resistor Type | Metal Foil |
| RoHS Compliant | Yes |
| Series | SMR3DZ |
| Technology | METAL FOIL |
| Termination | SMD/SMT |
| Tolerance | 0.01% |
| Voltage Rating | 180V |
| Weight | 0.008607oz |
| Width | 4.32mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y174610K0000T9R Datasheet
Download the complete datasheet for VPG Foil Resistors Y174610K0000T9R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

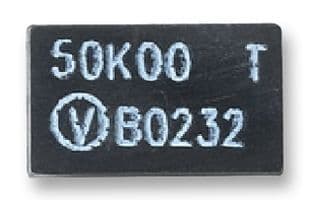

Product Images
