General purpose variable resistor with 10kR resistance and 5% tolerance. Features metal foil technology, a linear taper, and 250mW maximum power dissipation. Designed for through-hole PCB mounting with PC pin terminations. Operates across a wide temperature range of -55°C to 150°C and has a voltage rating of 250V.
PackageMetal
Resistance10kR
Voltage Rating250V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
VPG Foil Resistors Y405310K0000J0L technical specifications.
General
| Package/Case | Metal |
| Depth | 4.45mm |
| Height | 6.35mm |
| Length | 6.35mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole, PCB |
| Number of Turns | 21 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 10kR |
| Resistance Tolerance | 5% |
| Resistor Type | Metal Foil |
| RoHS Compliant | Yes |
| Series | 1240 |
| Taper | Linear |
| Technology | METAL FOIL |
| Termination | PC Pin |
| Tolerance | 5% |
| Voltage Rating | 250V |
| Weight | 0.01411oz |
| Width | 4.45mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y405310K0000J0L Datasheet
Download the complete datasheet for VPG Foil Resistors Y405310K0000J0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

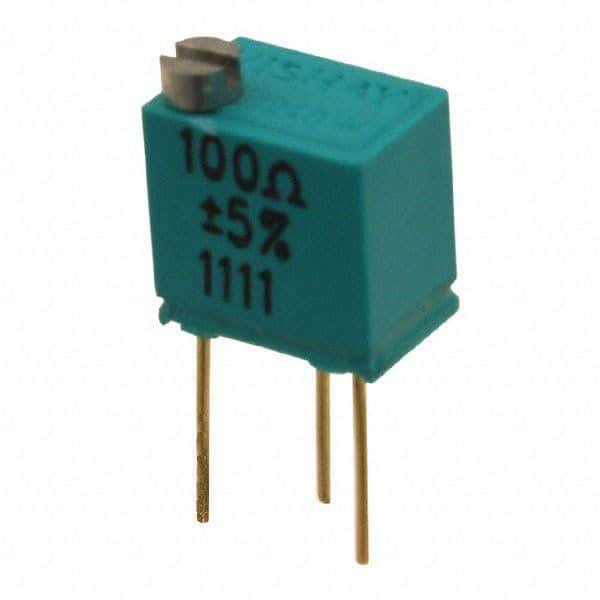

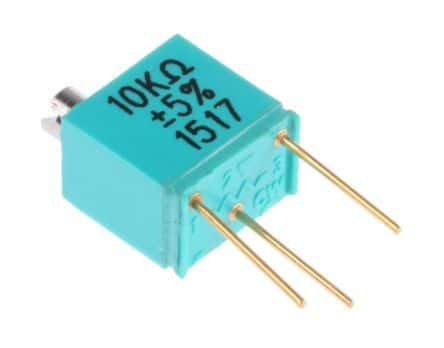

Product Images
