5k Ohm, 0.25W metal foil trimmer resistor with 5% resistance tolerance. Features a metal package, PC pin termination, and through-hole PCB mounting. Operates across a -55°C to 150°C temperature range with a 250V voltage rating and 21 turns.
PackageMetal
Resistance5kR
Voltage Rating250V
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
VPG Foil Resistors Y40535K00000J0L technical specifications.
General
| Package/Case | Metal |
| Depth | 4.45mm |
| Height | 0.25inch |
| Length | 6.35mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole, PCB |
| Number of Turns | 21 |
| Package Quantity | 25 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 5kR |
| Resistance Tolerance | 5% |
| Resistor Type | Metal Foil |
| RoHS Compliant | Yes |
| Series | 1240 |
| Technology | METAL FOIL |
| Termination | PC Pin |
| Tolerance | 5% |
| Voltage Rating | 250V |
| Weight | 0.01411oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
VPG Foil Resistors Y40535K00000J0L Datasheet
Download the complete datasheet for VPG Foil Resistors Y40535K00000J0L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

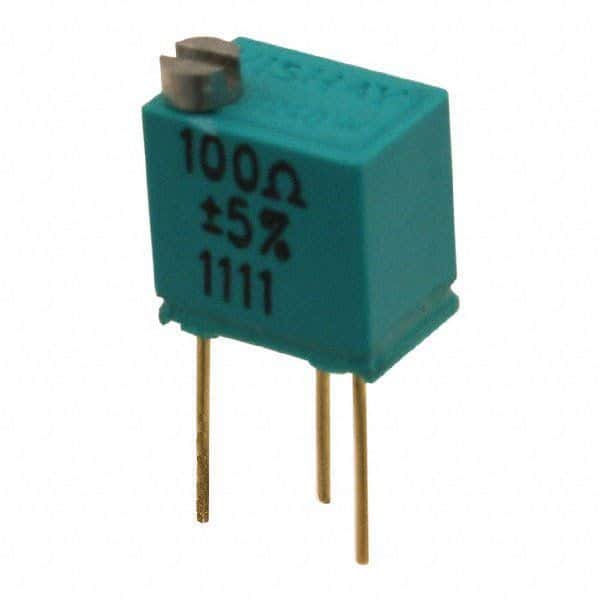

Product Images
