Single-chip Ethernet controller supporting 10Mbps and 100Mbps data rates via an SPI interface. Features a 48-pin LQFP package with a 1.6mm height. Operates within a 2.97V to 3.63V supply voltage range, with a nominal supply voltage of 3.63V and a maximum supply current of 132mA. This lead-free, RoHS-compliant component offers one transceiver and eight channels, with three distinct functions.
PackageLQFP
Quick Jump:
Technical Specifications
Wiznet W5500 technical specifications.
General
| Package/Case | LQFP |
| Data Rate | 100Mbps |
| Height | 1.6mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 132mA |
| Max Supply Voltage | 3.63V |
| Min Supply Voltage | 2.97V |
| Nominal Supply Current | 132mA |
| Number of Channels | 8 |
| Number of Functions | 3 |
| Number of Transceivers | 1 |
| Operating Supply Current | 132mA |
| Packaging | Strip |
| RoHS Compliant | Yes |
| Supply Voltage-Nom | 3.63V |
Compliance
| RoHS | Compliant |
Datasheet
Wiznet W5500 Datasheet
Download the complete datasheet for Wiznet W5500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

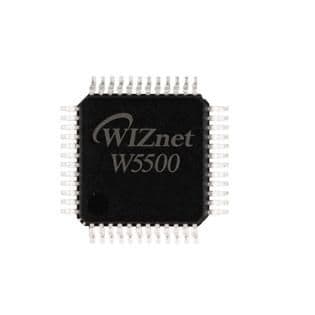

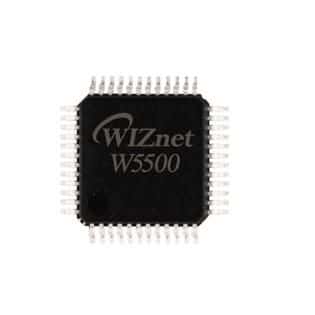

Product Images
