Surface mount data line filter featuring 2 functions, 80V voltage rating, and 1A current capacity. This ferrite core component offers 500µH inductance with a 50% tolerance at 100kHz, and a maximum DC resistance of 150mR. Designed for surface mounting, it operates within a temperature range of -40°C to 125°C and is RoHS compliant.
PackageSMD/SMT
Current1A
Resistance150mR
Voltage Rating80V
Quick Jump:
Technical Specifications
Wurth Electronics 744223 technical specifications.
General
| Package/Case | SMD/SMT |
| Core Material | Ferrite |
| Current | 1A |
| Current Rating | 1A |
| DC Resistance (DCR) | 150mR |
| Depth | 6mm |
| Height | 5mm |
| Impedance | 3.3kR |
| Inductance | 500uH |
| Inductance Tolerance | 50% |
| Lead Free | Lead Free |
| Length | 9.2mm |
| Max Current Rating | 1A |
| Max DC Current | 1A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Lines | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 150mR |
| RoHS Compliant | Yes |
| Series | WE-SL2 |
| Series Resistance | 150mR |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 50% |
| Voltage Rating | 80V |
| Voltage Rating (AC) | 80V |
| DC Rated Voltage | 80V |
| Weight | 0.017672oz |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Wurth Electronics 744223 Datasheet
Download the complete datasheet for Wurth Electronics 744223 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

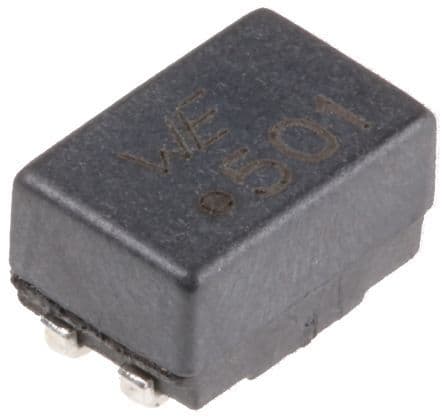

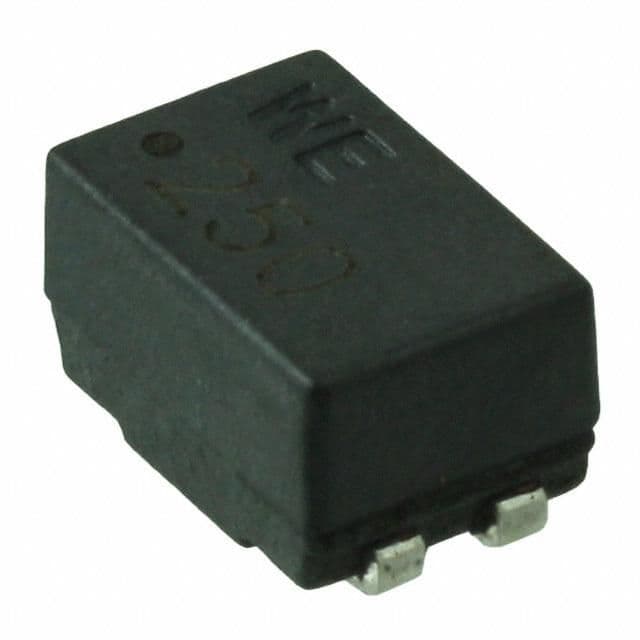

Product Images
