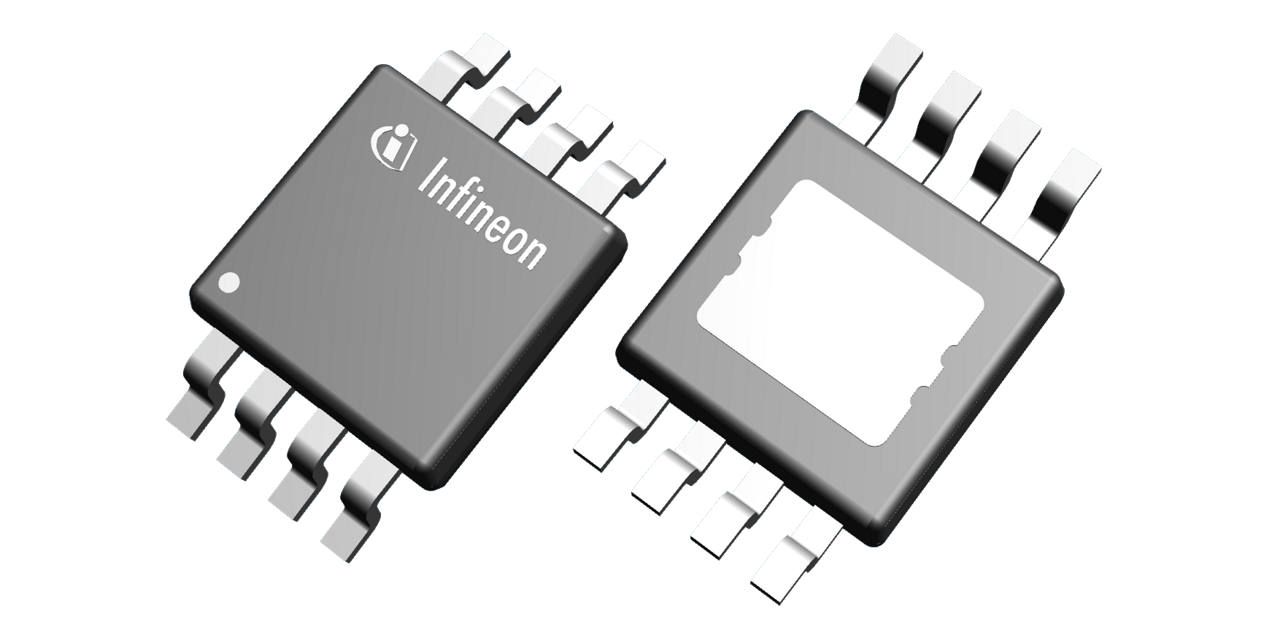

This transformer driver IC generates an open-loop isolated gate-driver supply for IGBT, SiC MOSFET, and similar power-switch applications. It operates from a 4.5 V to 20 V supply and supports up to 5 W output power. The 2EP101R variant provides 50 kHz or 65 kHz switching frequency options and fixed 12% or 17% duty-cycle settings for asymmetric gate-driver supplies. Integrated protection functions include UVLO monitoring, average and peak overcurrent protection, short-circuit protection, overtemperature shutdown, soft start, and a ready output. It is qualified for industrial applications, supports ambient operation from -40 °C to 125 °C, and is supplied in an 8-pin TSSOP package.
Checking distributor stock and pricing after the page loads.
| Channels | 2 |
| Configuration | Full Bridge |
| Supply Voltage Min | 4.5V |
| Supply Voltage Max | 20V |
| Output Power Max | 5W |
| Switching Frequency Option 1 | 50kHz |
| Switching Frequency Option 2 | 65kHz |
| Duty Cycle Option 1 | 12% |
| Duty Cycle Option 2 | 17% |
| Synchronization Propagation Delay Typ | 280ns |
| Supply Current Typ | 6mA |
| UVLO Rising Threshold Typ | 4.2V |
| UVLO Falling Threshold Typ | 3.9V |
| UVLO Hysteresis Typ | 0.3V |
| Ambient Operating Temperature Min | -40°C |
| Ambient Operating Temperature Max | 125°C |
| Peak Overcurrent Threshold Typ | 4.8A |
| Overtemperature Threshold | 150°C |
| Package Pins | 8 |
| Lead Pitch | 0.65mm |
| Body Length | 3.0mm |
| Body Width | 3.0mm |
| Body Thickness | 0.86mm |
| Thermal Resistance Junction-to-Ambient | 75K/W |
| Rise Time Typ | 15ns |
| Fall Time Typ | 15ns |
| Lead-free | Yes |
| RoHS Compliant | Yes |
| Halogen Free | Yes |
