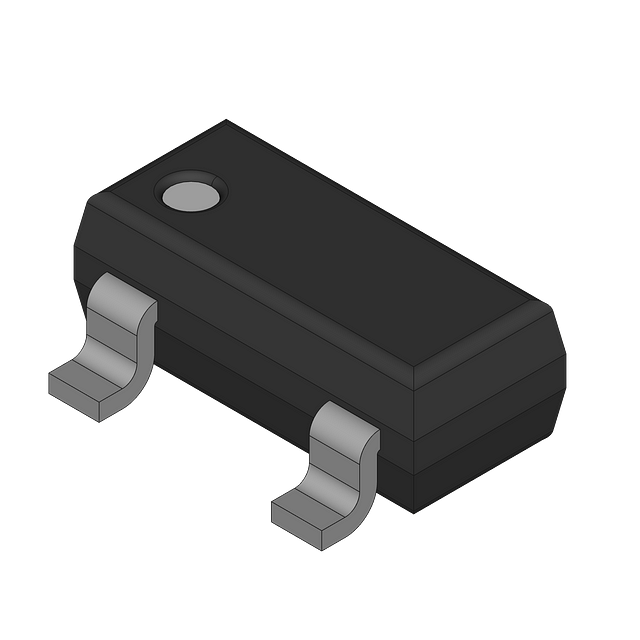

| Package/Case | SOT |
| Element Configuration | Single |
| Forward Current | 250mA |
| Height | 1mm |
| Length | 2.9mm |
| Max Forward Surge Current (Ifsm) | 4.5A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 85V |
| Max Reverse Current | 1uA |
| Reverse Recovery Time | 4ns |
| RoHS Compliant | Yes |
| Voltage | 75V |
| Width | 1.3mm |
| RoHS | Compliant |
