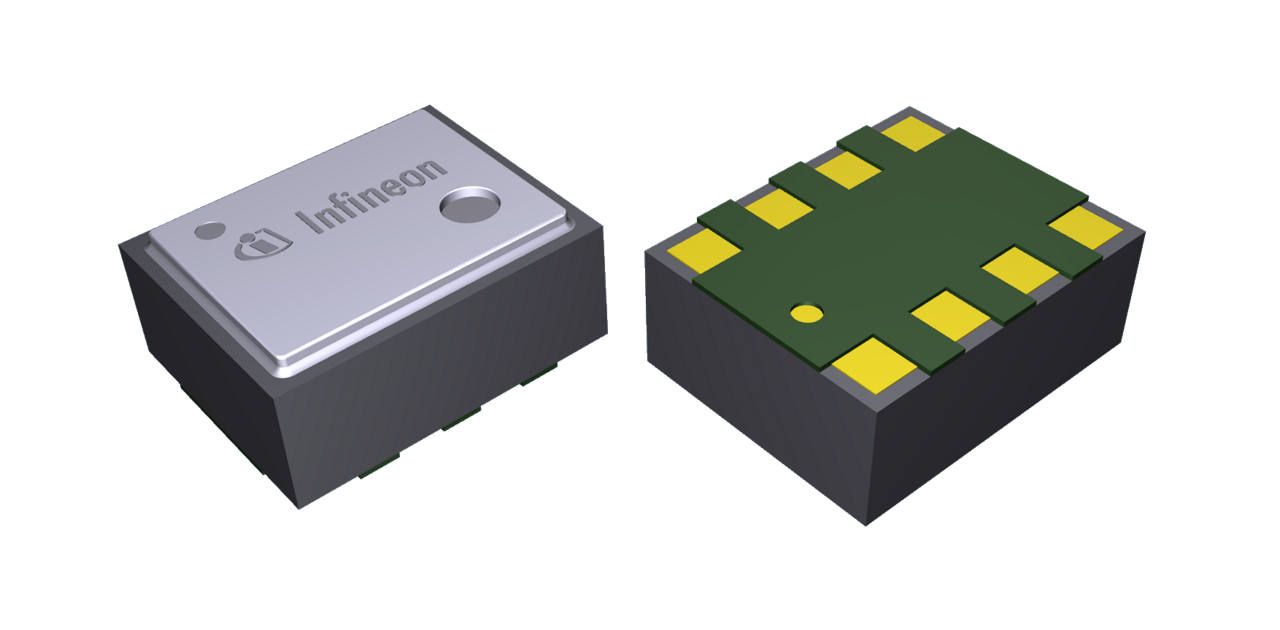

The DPS368 is a miniaturized digital barometric pressure sensor that measures both pressure and temperature in a compact 8-pin LGA package. It operates from 1.7 V to 3.6 V, measures pressure from 300 hPa to 1200 hPa, and supports an operating temperature range of -40 °C to 85 °C. The sensor provides relative pressure accuracy of ±0.06 hPa, absolute accuracy of ±1 hPa, pressure precision of ±0.002 hPa, and temperature accuracy of ±0.5 °C. It communicates through I2C or SPI with optional interrupt support and integrates a FIFO. The package is environmentally protected against water, dust, and humidity with IPx8 resistance.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon DPS368 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Pressure range | 300 to 1200hPa |
| Supply voltage range | 1.7 to 3.6V |
| Operating temperature range | -40 to 85°C |
| Relative pressure accuracy | ±0.06hPa |
| Absolute pressure accuracy | ±1hPa |
| Pressure precision | ±0.002hPa |
| Temperature accuracy | ±0.5°C |
| Average current consumption | 1.7 at 1 Hz pressure measurementµA |
| Standby current | 0.5µA |
| Interface | I2C and SPI |
| Interrupt support | Optional |
| FIFO | Integrated |
| Package dimensions | 2.0 x 2.5 x 1.1mm |
| Water protection rating | IPx8 |
| Underwater survivability | 50 m for 1 hour |
| RoHS | Yes |
| REACH | Compliant |
| Military Spec | False |
