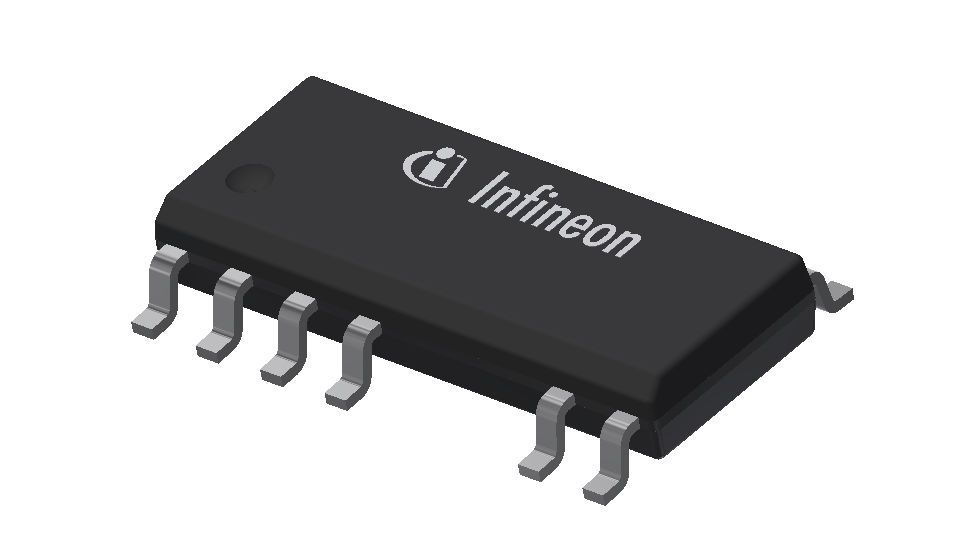

The ICE2QR2280G is a 12-pin dual input voltage DC/DC controller from Infineon, packaged in a SOP-12 format. It has a maximum input voltage of 26V and a minimum input voltage of 11.2V. The device has 12 terminals and is a single-function device. It is designed for use in DC/DC controller applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Infineon ICE2QR2280G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Number of Terminals | 12 |
| Terminal Position | DUAL |
| JEDEC Package Code | R-PDSO-G12 |
| Width | 4 |
| Length | 10 |
| Pin Count | 12 |
| Number of Functions | 1 |
| Input Voltage-Max | 26 |
| Input Voltage-Min | 11.2 |
| RoHS | Yes |
| Eccn Code | EAR99 |
| Lead Free | Yes |
| HTS Code | 8542.39.00.01 |
| REACH | Compliant |
| Military Spec | False |
