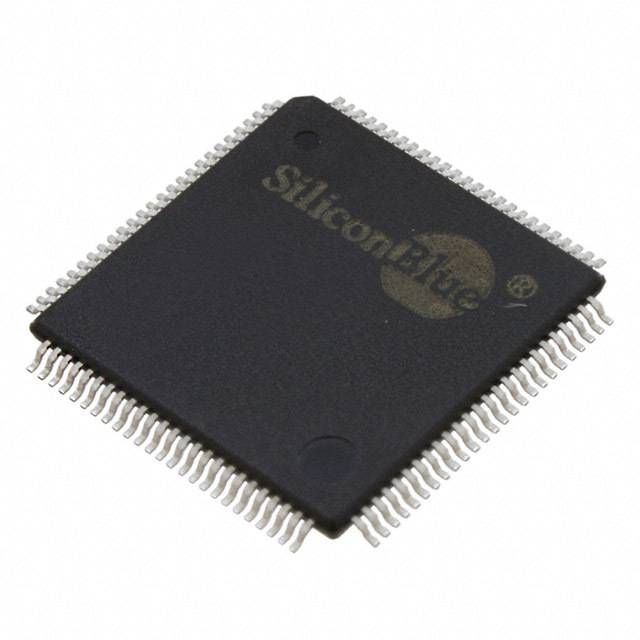

Field Programmable Gate Array (FPGA) with 1280 logic elements and 1280 macrocells. Features 72 I/O pins, 160 logic array blocks (LABs), and 64Kb of RAM. Operates at a supply voltage of 1.2V, with a frequency up to 533MHz. Housed in a 100-pin VQFP package, this lead-free component offers a wide operating temperature range from -40°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Lattice Semiconductor ICE40HX1K-VQ100 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LQFP |
| Density | 64Kb |
| Frequency | 256MHz |
| Height | 1.05mm |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Frequency | 533MHz |
| Max Operating Temperature | 85°C |
| Memory Size | 64Kb |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.26V |
| Min Supply Voltage | 1.14V |
| Number of Gates | 1280 |
| Number of I/Os | 72 |
| Number of Logic Blocks (LABs) | 160 |
| Number of Logic Elements/Cells | 1280 |
| Number of Macrocells | 1280 |
| Number of Registers | 1280 |
| Operating Supply Voltage | 1.2V |
| Package Quantity | 90 |
| Packaging | Tray |
| Radiation Hardening | No |
| RAM Size | 65536b |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | iCE40™ HX |
| Weight | 0.023175oz |
| Width | 14mm |
| RoHS | Compliant |
