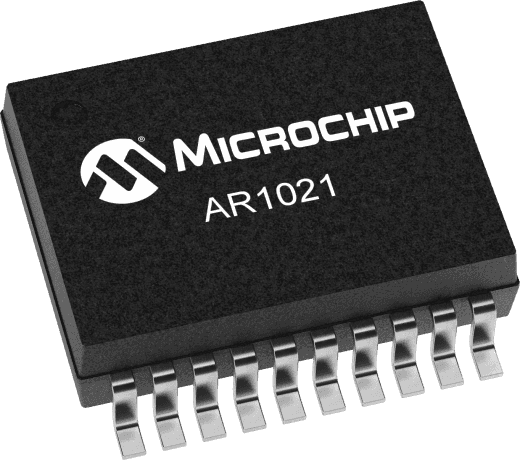

Automotive 4-wire resistive touchscreen controller IC with 10-bit resolution. Features I2C, SPI, 4-wire, 5-wire, and 8-wire serial interface options. Operates from a 2.5V to 5.25V supply voltage with a maximum supply current of 17mA. Packaged in a 20-pin SSOP with tin, matte contact plating, suitable for tape and reel packaging. Extended operating temperature range from -40°C to 85°C, lead-free and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Microchip AR1021T-I/SS datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SSOP |
| Contact Plating | Tin, Matte |
| Interface | I2C, SPI, 4-WIRE, 5-WIRE, 8-WIRE, Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 17mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.5V |
| Operating Supply Current | 17mA |
| Package Quantity | 1600 |
| Packaging | Tape and Reel |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | mTouch™ |
| Supply Current | 17mA |
| Touchscreen | Resistive |
| RoHS | Compliant |
