Automotive-grade positive linear voltage regulator with a fixed 3.3V output and 250mA maximum output current. Features a low dropout voltage of 178mV and high output voltage accuracy of 2%. Operates from a 2.3V to 6V input voltage range with a quiescent current of 4µA. Housed in a compact SOT-89 surface mount package, this RoHS compliant component is designed for reliable performance across a wide temperature range of -40°C to 125°C.
PackageSOT-89
Current4uA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Microchip MCP1700T-3302E/MB technical specifications.
General
| Accuracy | 3% |
| Package/Case | SOT-89 |
| Dropout Voltage | 178mV |
| Height | 1.6mm |
| Input Bias Current | 1.6uA |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Input Voltage | 6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250mA |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 3.3V |
| Max Power Dissipation | 1.635W |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Nominal Output Voltage | 3.3V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 250mA |
| Output Type | Fixed |
| Output Voltage | 3.3V |
| Output Voltage Accuracy | 2% |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Dissipation | 1.635W |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 4uA |
| Termination | SMD/SMT |
| Width | 2.29mm |
Compliance
| RoHS | Compliant |
Datasheet
Microchip MCP1700T-3302E/MB Datasheet
Download the complete datasheet for Microchip MCP1700T-3302E/MB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

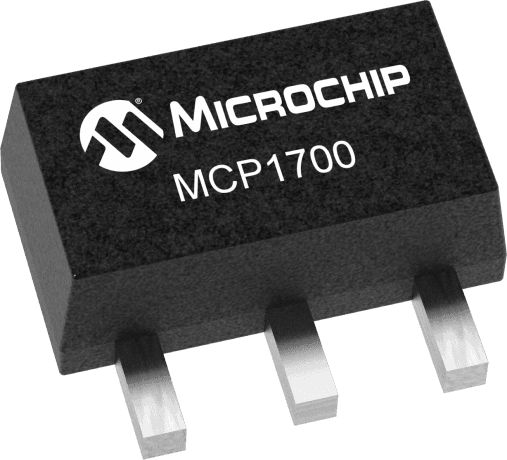

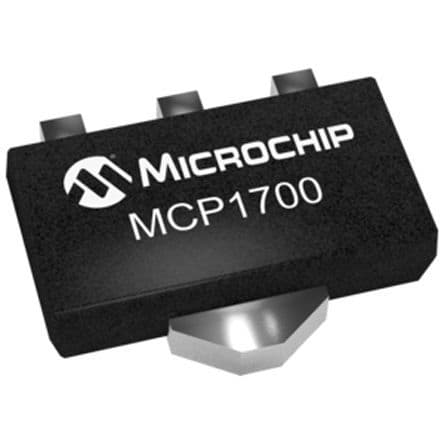

Product Images
