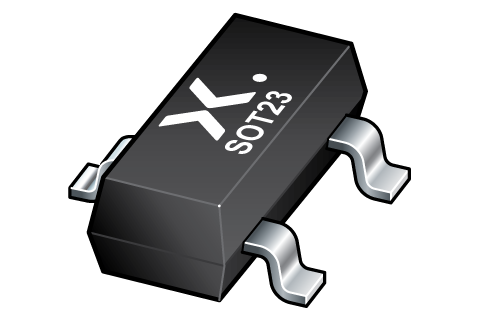

NPN general-purpose transistor is supplied in a small SOT23 surface-mounted plastic package. It supports a 45 V collector-emitter voltage and 500 mA continuous collector current, with 1 A peak collector current for short pulses. The BC817-40 gain selection provides 250 to 600 DC current gain at 100 mA and 1 V. The device is intended for general-purpose switching and amplification over a -65 °C to 150 °C ambient and storage temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Nexperia BC817-40 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Transistor polarity | NPN |
| Collector-emitter voltage | 45V |
| Collector-base voltage | 50V |
| Emitter-base voltage | 5V |
| Collector current | 500mA |
| Peak collector current | 1A |
| Peak base current | 200mA |
| DC current gain | 250 to 600 at VCE = 1 V, IC = 100 mA |
| DC current gain at high current | 40 minimum at VCE = 1 V, IC = 500 mA |
| Collector-emitter saturation voltage | 700 maximum at IC = 500 mA, IB = 50 mAmV |
| Base-emitter voltage | 1.2 maximum at VCE = 1 V, IC = 500 mAV |
| Transition frequency | 100 minimumMHz |
| Collector capacitance | 3 typicalpF |
| Total power dissipation | 250 maximum on standard footprintmW |
| Junction temperature | 150 maximum°C |
| Ambient temperature range | -65 to 150°C |
| Storage temperature range | -65 to 150°C |
| Thermal resistance junction to ambient | 500 maximum on standard footprintK/W |
| Pin count | 3 |
| Marking code | 6C% |
