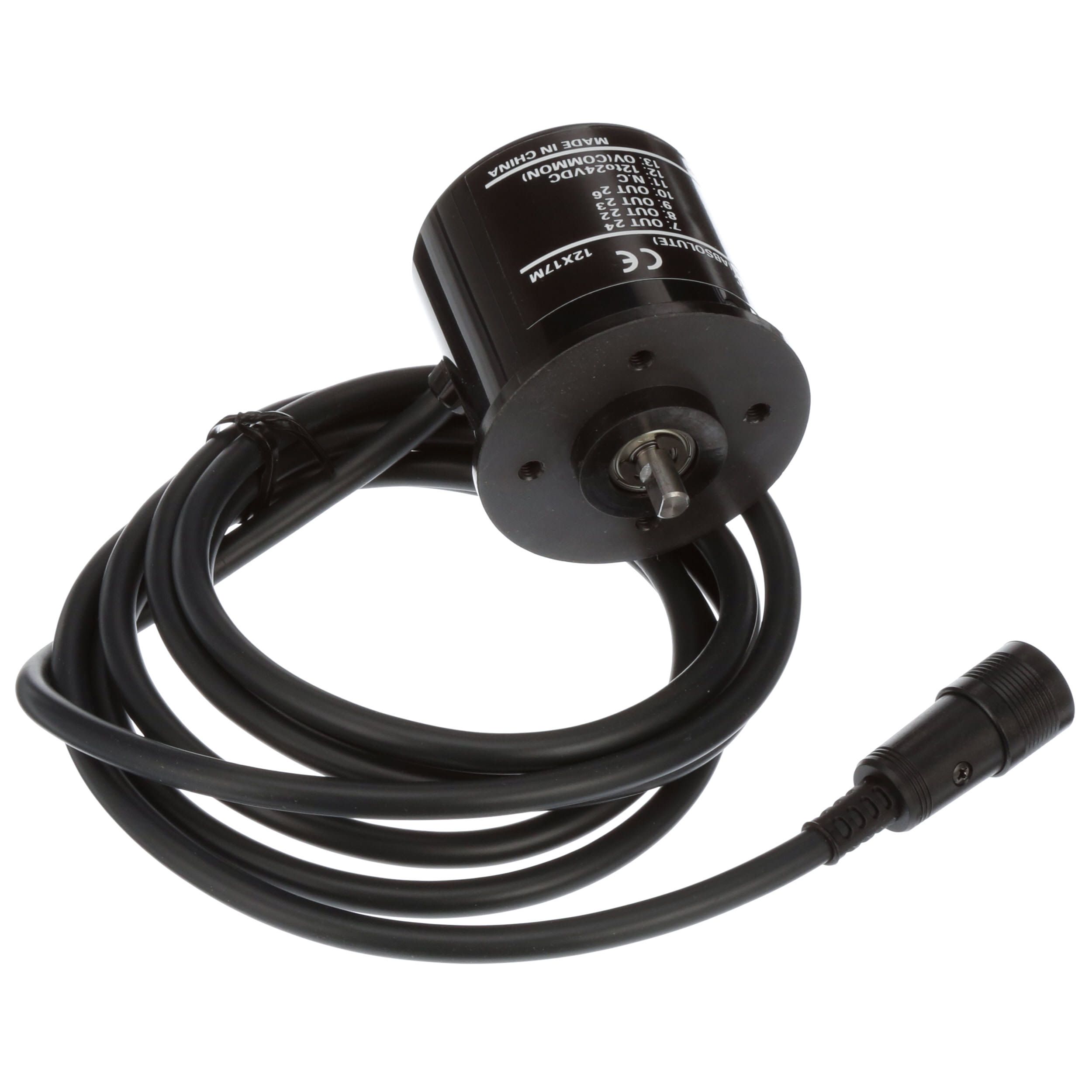

The Omron E6CP-AG5C-C is a 24V optical encoder with a right angle orientation and chassis mount. It operates within a temperature range of -10°C to 55°C and is rated for IP50 protection. This encoder is compliant with RoHS regulations and features an 8-bit resolution.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E6CP-AG5C-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Built in Switch | No |
| Package/Case | Radial |
| Detent | No |
| Encoder Type | Optical |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Chassis Mount |
| Operating Supply Voltage | 24V |
| Orientation | Right Angle |
| Package Quantity | 1 |
| Ratings | IP50 |
| Reach SVHC Compliant | Unknown |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Series | E6CP |
| Termination | Cable |
| RoHS | Not Compliant |
