Unidirectional Transient Voltage Suppressor (TVS) diode designed for voltage protection. Features a 12V reverse standoff voltage and 12V operating supply voltage. Offers a minimum breakdown voltage of 13.3V and a clamping voltage of 19.9V. Capable of handling a peak pulse power of 1.5kW and a peak pulse current of 75.3A. Packaged in an SMC (DO-214AB) surface-mount package, supplied on a 2500-piece reel. Operates across a temperature range of -65°C to 150°C.
PackageSMC
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi 1SMC12AT3 technical specifications.
General
| Package/Case | SMC |
| Clamping Voltage | 19.9V |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Height | 2.41mm |
| Lead Free | Contains Lead |
| Length | 7.11mm |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Surge Current | 75.3A |
| Number of Channels | 1 |
| Number of Unidirectional Channels | 1 |
| Operating Supply Voltage | 12V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 75.3A |
| Peak Pulse Power | 1.5kW |
| Polarity | Unidirectional |
| Power Line Protection | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | No |
| Termination | SMD/SMT |
| DC Rated Voltage | 12V |
| Width | 6.1mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Onsemi 1SMC12AT3 Datasheet
Download the complete datasheet for Onsemi 1SMC12AT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

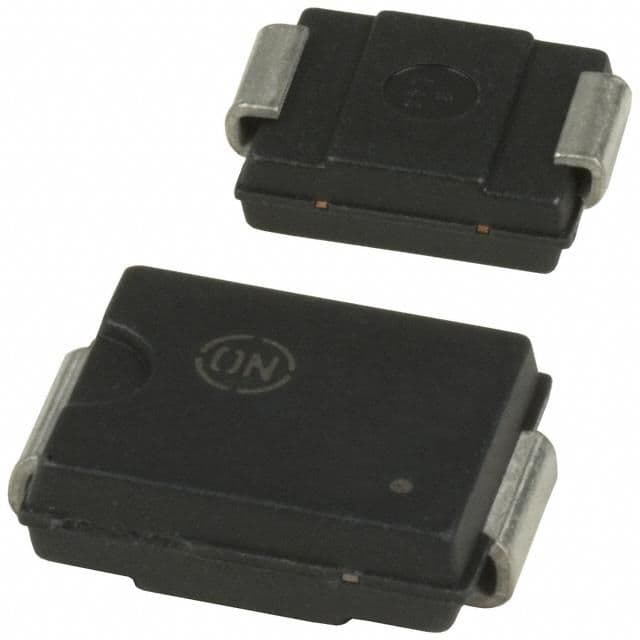

Product Images
