128Kb Serial EEPROM memory with I2C interface, organized as 16K x 8. Features a maximum operating frequency of 400kHz and a maximum access time of 900ns. Operates from 1.8V to 5.5V supply voltage, with a typical supply current of 3mA. Packaged in a halogen-free, lead-free UDFN8 (2x3mm) surface mount package, suitable for tape and reel. Includes write protection and operates across an extended temperature range of -40°C to 85°C.
Frequency400kHz
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Onsemi CAT24C128HU4IGT3 technical specifications.
General
| Access Time-Max | 900ns |
| Density | 128Kb |
| Frequency | 400kHz |
| Halogen Free | Halogen Free |
| Height | 0.5mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 128KB |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Words | 16384 |
| Organization | 16KX8 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Width | 3.1mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi CAT24C128HU4IGT3 Datasheet
Download the complete datasheet for Onsemi CAT24C128HU4IGT3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

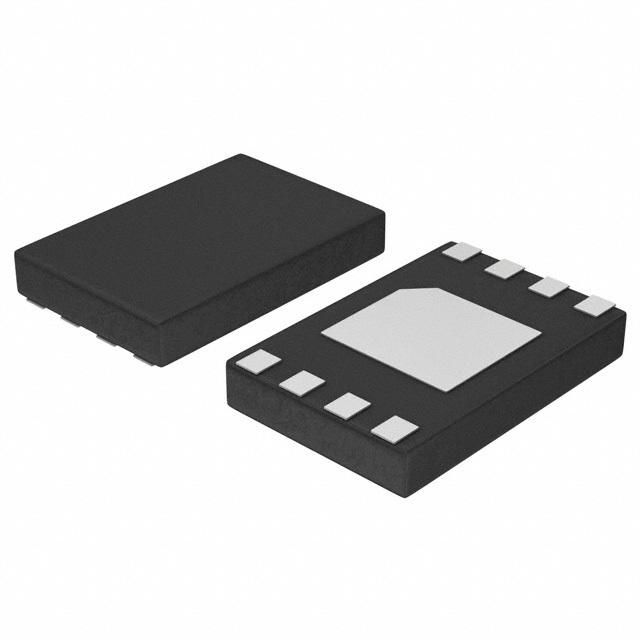

Product Images
