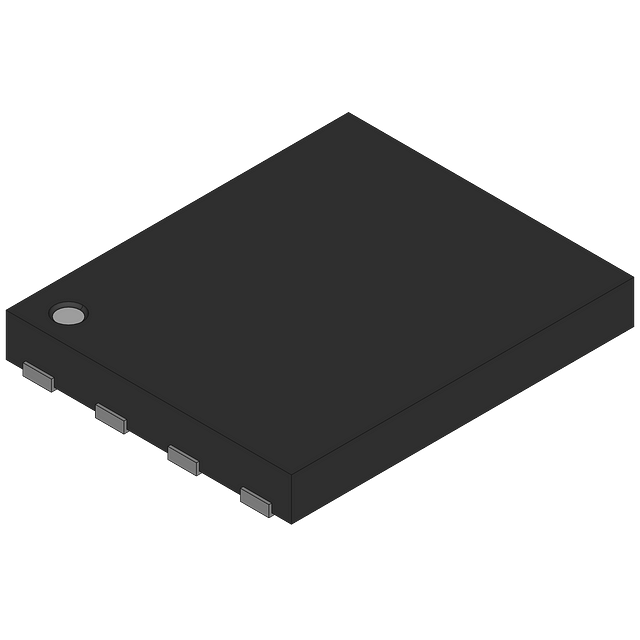

The FAN1655MPX is a surface mount termination IC from Onsemi, designed to operate within a temperature range of 0°C to 125°C. It has a maximum input voltage of 3.6V and a minimum input voltage of 2.3V. This IC provides a single output voltage of 1.8V with a maximum output current of 3A. The FAN1655MPX is packaged in a variety of formats, including rail and tube packaging, and is available in quantities of up to 3000 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Onsemi FAN1655MPX datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Lead Free | Lead Free |
| Max Input Voltage | 3.6V |
| Min Input Voltage | 2.3V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Voltage | 1.8V |
| Package Quantity | 3000 |
| Packaging | Rail/Tube |
| Reference Voltage | 1.355V |
| RoHS Compliant | No |
| Weight | 0.21g |
| RoHS | Not Compliant |
