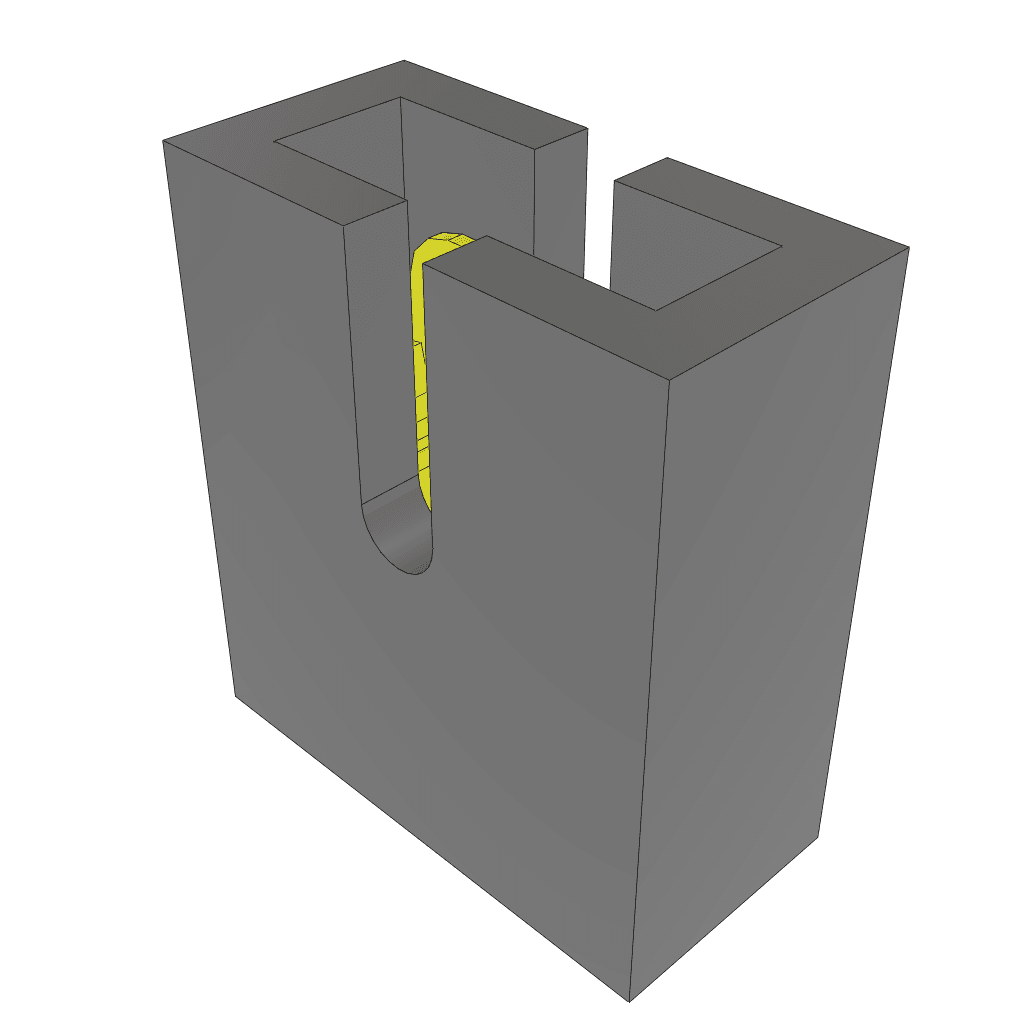

Two-position, single-row straight shunt jumper with 2mm pitch. Features gold-plated bronze contacts and a black housing. Rated for a maximum current of 2.5A and operates between -40°C and 90°C. Bulk packaged for efficient integration.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Samtec 2SN-BK-G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 2mm |
| Height | 0.175inch |
| Housing Color | Black |
| Length | 3.99mm |
| Max Current Rating | 2.5A |
| Max Operating Temperature | 90°C |
| Min Operating Temperature | -40°C |
| Number of Contacts | 2 |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 2mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 2SN |
| RoHS | Compliant |
Download the complete datasheet for Samtec 2SN-BK-G to view detailed technical specifications.
