Dual high voltage gate driver IC for power management applications. Features a maximum operating frequency of 400kHz and a maximum output current of 650mA. Operates within a supply voltage range of 5.5V to 17V, with a maximum power dissipation of 750mW. Includes a propagation delay of 110ns and fall time of 30ns. Packaged in a lead-free SOIC surface mount case, measuring 4.9mm x 3.9mm x 1.25mm. RoHS compliant with a temperature range of -45°C to 125°C.
Frequency400kHz
PackageSOIC
MountingSurface Mount
Power750mW
Quick Jump:
Technical Specifications

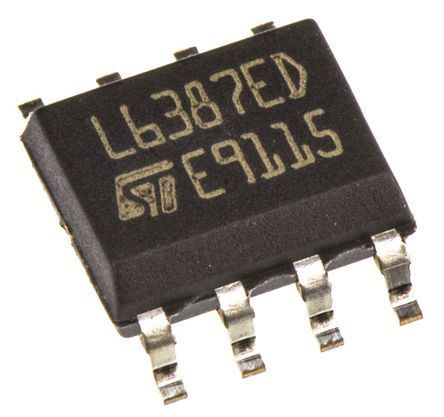

Stmicroelectronics L6387ED technical specifications.
General
| Package/Case | SOIC |
| Fall Time | 30ns |
| Frequency | 400kHz |
| Height | 1.25mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -45°C |
| Max Output Current | 650mA |
| Max Power Dissipation | 750mW |
| Max Supply Voltage | 17V |
| Min Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Power Dissipation | 750mW |
| Propagation Delay | 110ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Turn-Off Delay Time | 105ns |
| Turn-On Delay Time | 110ns |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics L6387ED Datasheet
Download the complete datasheet for Stmicroelectronics L6387ED to view detailed technical specifications.
