Single USB 2.0 power switch IC, featuring a 5.5V maximum output voltage and 2.8A maximum output current. This surface mount component offers over voltage, over temperature, and reverse current fault protection. Operating across a -40°C to 85°C temperature range, it includes an On/Off interface and a low 200nA supply current. Packaged in a 16-pin VFQFPN EP on tape and reel.
Current200nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STCC2540IQTR technical specifications.
General
Bandwidth
1GHz
Fault Protection
Over Voltage, Over Temperature, Reverse Current
Height
0.75mm
Interface
On/Off
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
2.8A
Max Output Voltage
5.5V
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Outputs
1
Number of Ports
1
Number of Switches
1
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
200nA
USB Standard
USB 2.0
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STCC2540IQTR Datasheet
Download the complete datasheet for Stmicroelectronics STCC2540IQTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

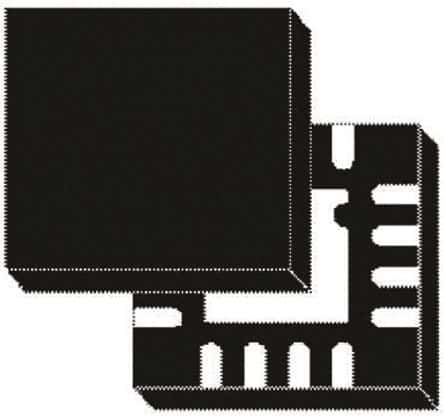

Product Images
